Product

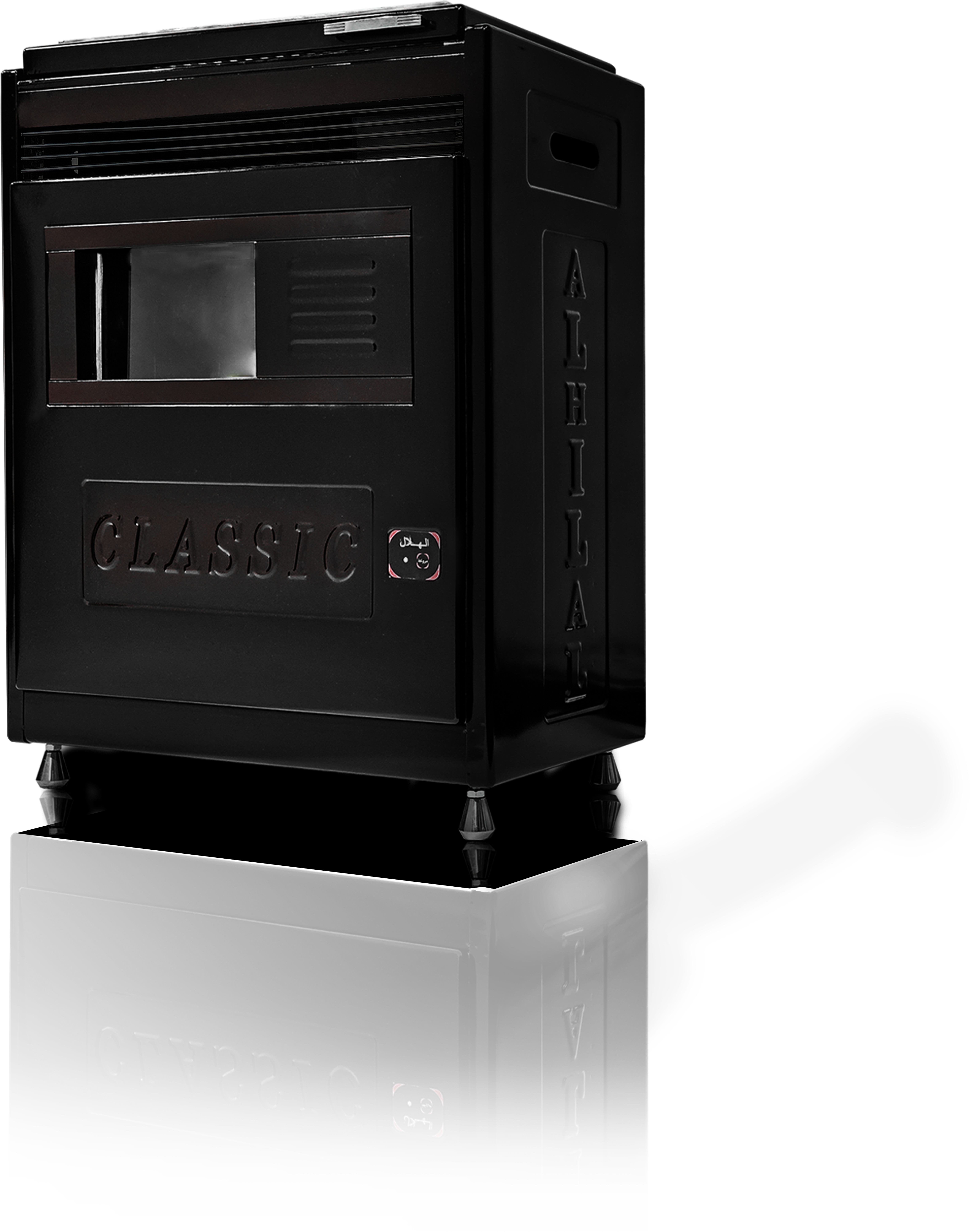

Al-Hilal - Turbo Classic
product id:HLHSB-4500CT
01. Specifications:
- Length: 64 cm
- Width: 40 cm
- Height: 80 cm
- Total heater weight: 34 kg ±2%
- Average heating area: 35 m² ±20%
- Average kerosene consumption: 0.5 liters/hour
- Internal kerosene tank capacity: 7 liters
- Kerosene regulator (carburetor)
- Combustion device equipped with air shutter that closes automatically after
- Heater ignition to protect the device from the hole that
- Usually occurs in heaters equipped with manual shutter
- Single speed turbine for hot air circulation
- High-quality thermal coating baked in oven
- Complete nozzle device to protect the font from burning, damage, and ease of maintenance
- Wide crystal interface size: 143×254 mm ×4
02. Operating Instructions:
- Fill the tank with clean kerosene up to the line inside the filter
- Connect the heater cable to the electrical outlet (220V)
- Set the regulator indicator to the middle after calibration
- Place the wick inside the device (helps with ignition)
- Open the kerosene valve 4 complete turns
- Light the wick inside the device
- To get hot air, turn on the turbine fan after 20 minutes of heater startup
03. Important Notes:
- The heater legs must be adjusted to be completely level and lock the adjustment after calibration
- Attention must be paid to the heater standing level on the ground to ensure the kerosene regulator (carburetor) works correctly
- On sunny days, place a small piece of cloth soaked in kerosene in the shape of a ball in the chimney pipe before operation to speed up the ignition process
- Empty the kerosene tank and dry it with a cloth at the end of winter
- Chemical materials or water are prohibited for cleaning the combustion device to prevent device damage
