Product

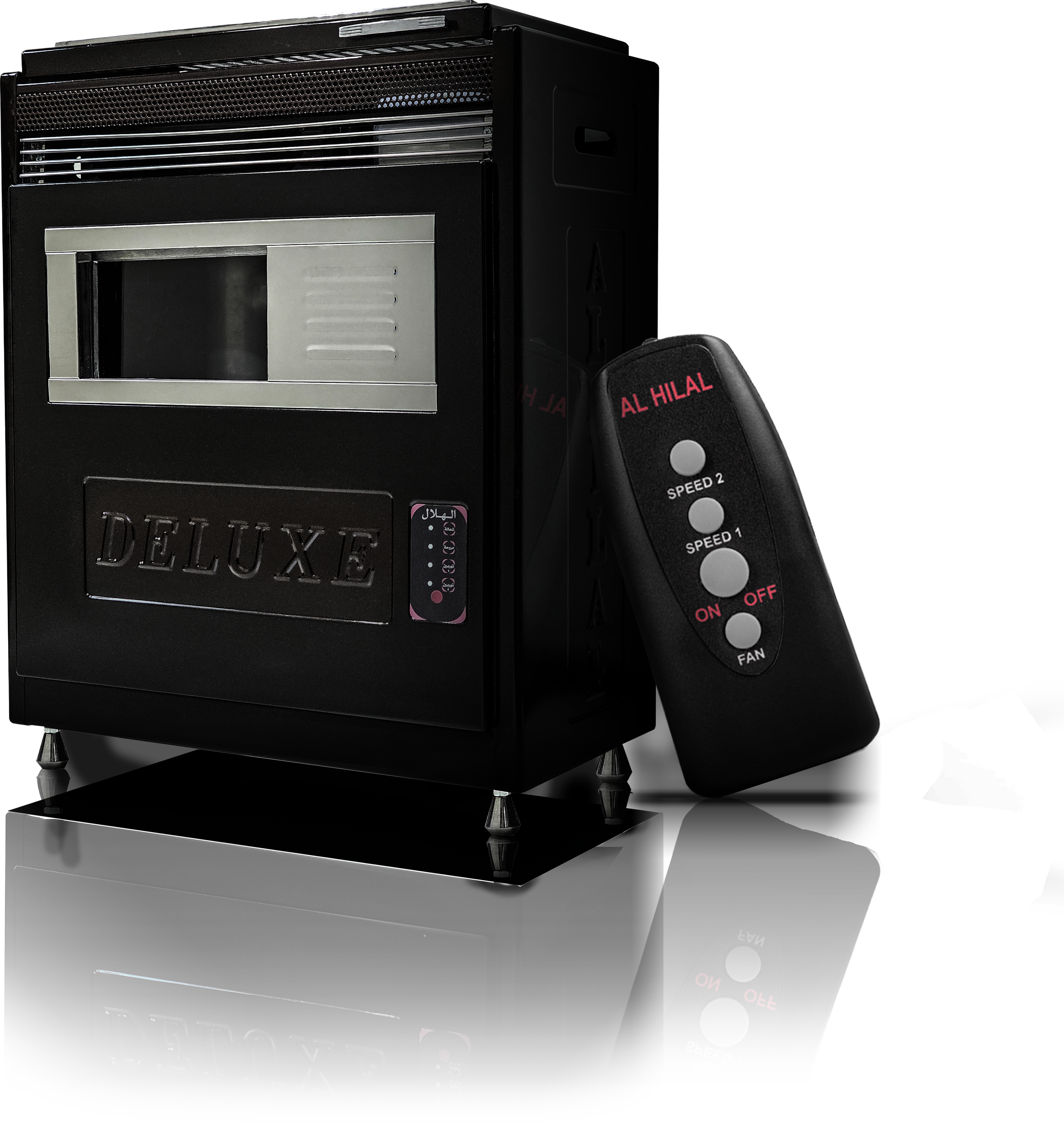

Al-Hilal - Deluxe
product id:HLHXB-5000DEX
01. Specifications:
- Height 80 cm, Width 40 cm, Length 64 cm
- Total heater weight: 38 kg - 2%
- Average heating area: 50 m² - 20%
- Kerosene consumption: 0.7 liters/hour
- Internal kerosene tank capacity: 7 liters
- Kerosene regulator (carburetor)
- Control device
- Automatic operation for all heater operation stages with one touch
- Control via device or touch keys
- Turbine fan with two speeds for hot air circulation
- Fan shutter helps with fast ignition
- High-quality thermal coating baked in oven
- Complete nozzle to protect the font from burning
- Wide crystal interface (143×254 mm × 4 mm)
02. Operating Instructions:
- Fill the kerosene tank with clean kerosene up to the line inside the filter
- Connect the heater cable to the electrical outlet (220V)
- Set the regulator indicator to the middle after calibration
- To ensure the kerosene regulator (carburetor) works correctly
- Press the start button on the control device to run the program automatically for 15 minutes starting with the igniter, then the fan shutter, then the turbine fan
- Open the kerosene valve 4 complete turns
- You can intervene at any moment to stop the circuit program and control the flame, fan shutter, or turbine speeds as needed
- If the heater does not ignite, raise the regulator indicator two levels then press the start button again
- Do not repeat this process more than twice consecutively (causes igniter damage)
- The reason for non-ignition may be dirty kerosene, chimney draft, or weak electricity
03. Important Notes:
- The heater legs must be adjusted to be completely level and lock the adjustment after calibration
- Attention must be paid to the heater standing completely level on the ground to ensure the kerosene regulator (carburetor) works correctly
- On sunny days, place a small piece of cloth soaked in kerosene in the shape of a ball in the chimney pipe before operation to speed up ignition
- Empty the kerosene tank and dry it with a cloth at the end of winter
- Chemical materials or water are prohibited for cleaning the combustion device
