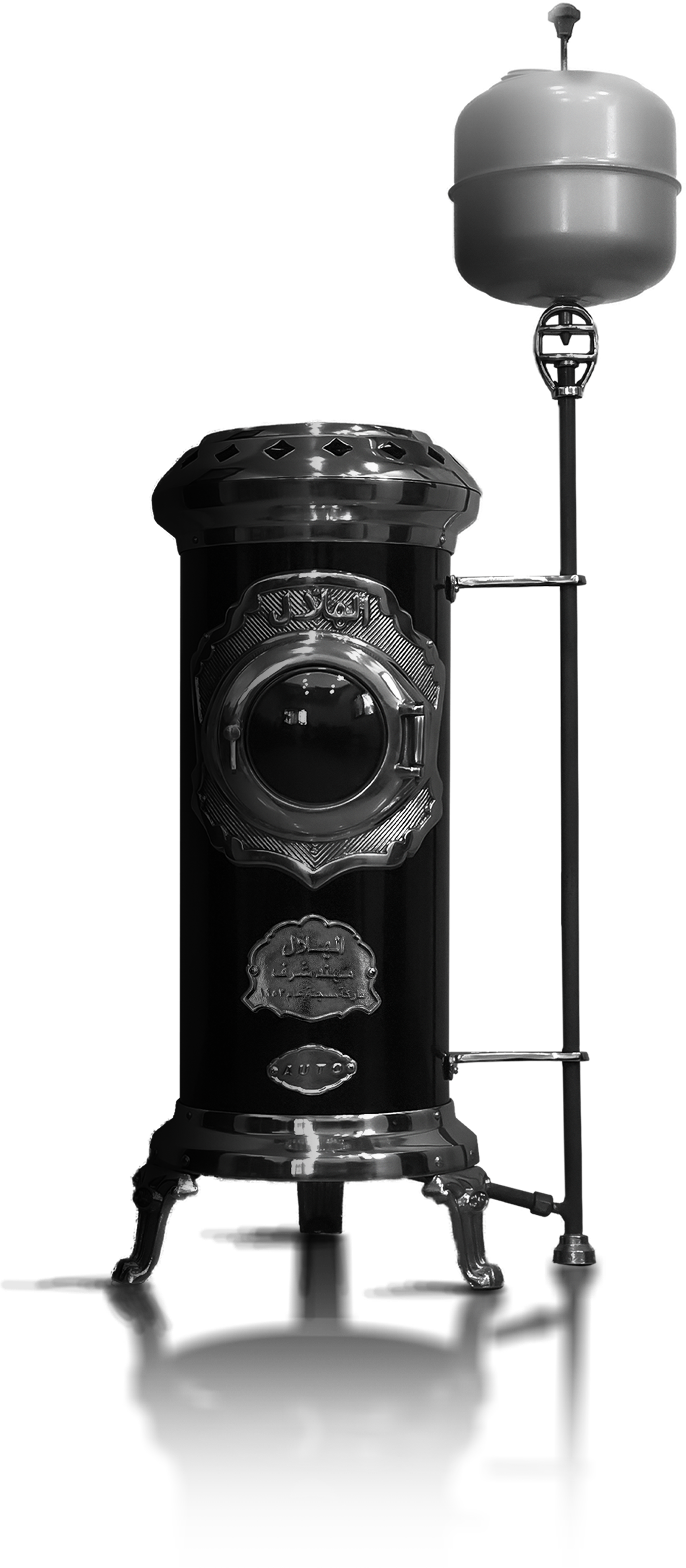

Round 23 Aluminum Heater
product id:HLRHA-0023A
01. Specifications:
- Heater height: 72 cm
- Heater size: 23 cm
- Total heater weight: 11.2 kg
- Average heating area: 20 m²
- Average kerosene consumption: 0.4 liters/hour
- Kerosene tank: External, 5 liter capacity
- Combustion device: Equipped with automatic air shutter that closes after heater ignition to protect the device from the hole that usually occurs in heaters equipped with manual shutter
- Coating: High-quality porcelain baked in oven
- Combustion device nozzle: Made of font to protect the device from damage and ease of maintenance
- Accessories: Made of aluminum
02. Operating Instructions:
- Fill the tank with clean kerosene up to the line inside the filter
- Set the regulator indicator to the middle
- Place the wick inside the device (helps with ignition)
- Open the kerosene valve as needed
- Light the wick inside the device
03. Important Notes:
- The heater legs must be adjusted to be completely level and lock the adjustment after calibration
- Attention must be paid to the heater standing completely level on the ground to ensure the kerosene regulator (carburetor) works correctly
- On sunny days, place a small piece of cloth soaked in kerosene in the shape of a ball in the chimney pipe before operation to speed up the ignition process
- Empty the kerosene tank and dry it with a cloth at the end of winter
- Chemical materials or water are prohibited for cleaning the combustion device to prevent device damage
